제품 상세 정보:
|
| 제품 유형: | 공기 스프링 조립체 | 모델: | 1V6173 |
|---|---|---|---|
| 피스톤: | 플라스틱 피스톤 | 어미판 지름: | 262mm(도면) |
| 피스톤 직경: | 200mm(도면) | 공기 연결: | M22×1.5 |
| 애플리케이션: | 상업용 차량의 서스펜션 | 보증: | 배송일로부터 14개월 |
| 강조하다: | VIGOR 1V6173 truck air spring,air spring with plastic piston,6173 NP40 truck air spring |
||

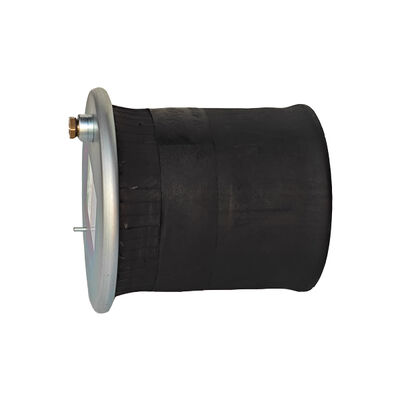

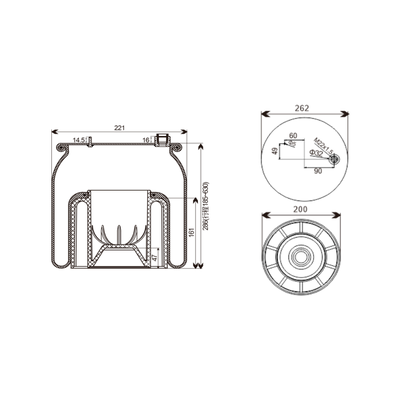

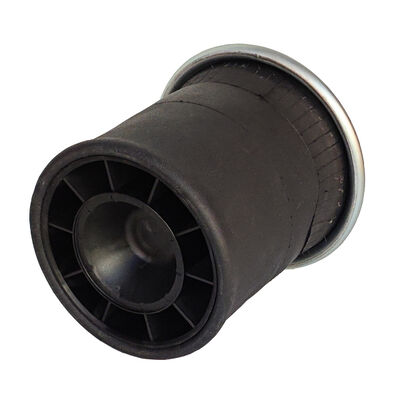

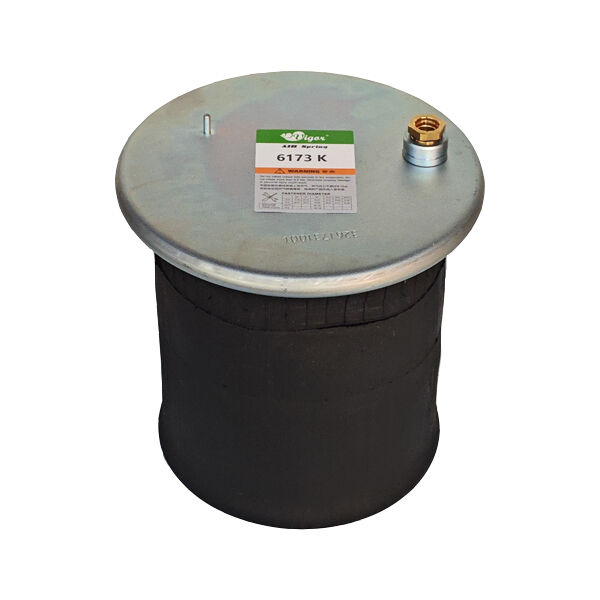

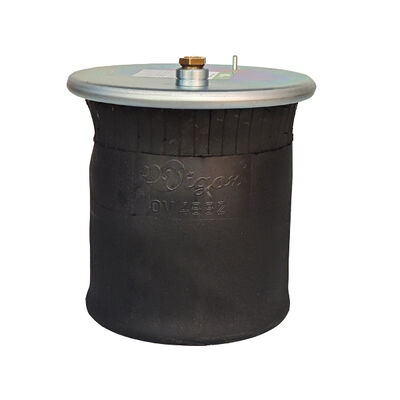

VIGOR 1V6173 Truck Air Spring Assembly Overview The VIGOR 1V6173 is a commercial vehicle air spring assembly supplied with an upper plate, rubber bellows and a plastic piston. Product photographs show the air connection, side profile and lower piston, while the dimension drawing provides a practical starting point for checking the assembly against the unit being replaced. For configuration verification before ordering, send a clear image of the old part together with its
