제품 상세 정보:
|
| OE 번호: | W01-358-9367,1T15M-11,4159NP05,1R12-283,256,39367K,8505,6367,AS-0104,0137,003319 | 이타오 번호: | 1V 9367 |
|---|---|---|---|
| 유형: | 트럭 공기 스프링 | 상태: | 아주 새로운 |
| 보증: | 12개월 | 일반적인 배송 시간: | 3~10일 |
| 씰링 구성: | 크림프 커버 플레이트 + 가황 밀봉 플레이트 | 재료: | 천연고무 |
| 피스톤 재질: | 알류미늄 | 포장: | 중립 포장 또는 맞춤형 포장 |
| 강조하다: | Commercial vehicle air suspension bag,Heavy duty truck air spring,Firestone Hendrickson air spring |
||

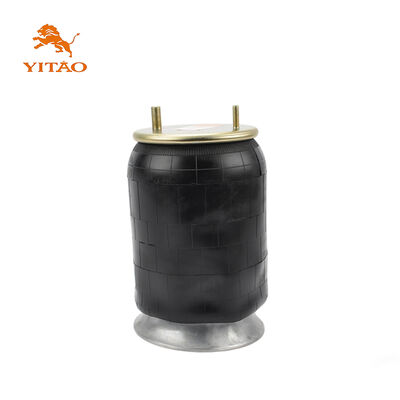

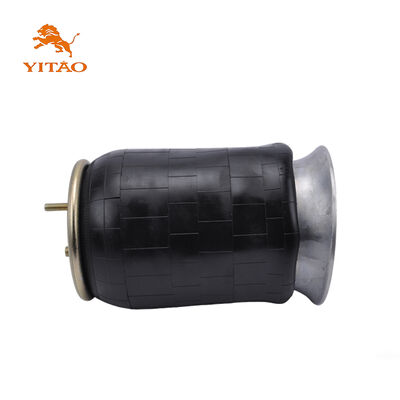

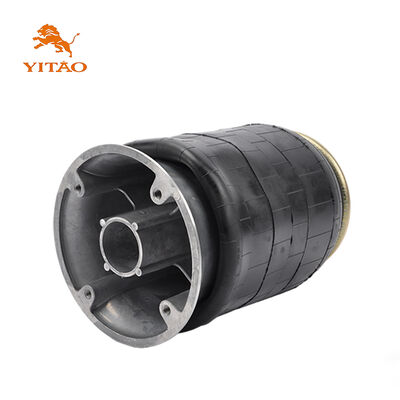

1V 9367 Truck Air Spring suitable for Firestone W01-358-9367 / Hendrickson 003319 applications.
| Brand | Reference Numbers | Numbering Discrepancy |
|---|---|---|
| Firestone | W01-358-9367 | W013589367 / W01-358-9367 / W01 358 9367 |
| Firestone | 1T15M-11 | 1T15M11 / 1T15M-11 / 1T15M 11 |
| Contitech | 4159NP05 | :4159NP05 |
| Goodyear | 1R12-283 | 1R12283 / 1R12-283 / 1R12 283 |
| Goodyear | 256 | :256 |
| Airtech | 39367K | :39367K |
| Triangle | 8505 | :8505 |
| Triangle | 6367 | :6367 |
| Watson&Chalin | AS-0104 | AS0104 / AS-0104 / AS 0104 |
| Watson&Chalin | 0137 | :0137 |
| Hendrickson | 003319 | :003319 |
| Specifications | Parameters |
|---|---|
| Outer diameter | φ255 |
| Weight | 8.308 kg |
| Package Dimensions | 27*27*45cm |
| Natural height | 695mm |
| Maximum height | 675mm |
| Minimum height | 237mm |
| Extended Height | / |
| Compressed Height | / |
| Top Plate Width | 231mm |
| Piston Width | 260mm |
Images shown are for reference only. Actual product may vary slightly.
