제품 상세 정보:
|
| OE 번호: | W01-M58-8473,93911,6607NP01,20.6607.1CM,1R11-805,2.62178,1DF17A-1,MLF7170,D11B42,134302,04.060.6206. | OE NO2: | 36418K,9518110060,20582214,20531987,1076418,31171695,20456156,20374511 |
|---|---|---|---|
| 유형: | 트럭 공기 스프링 | 애플리케이션: | 트럭 공기 스프링을 위해 |
| 포장: | 중립 포장 또는 맞춤형 포장 | 상태: | 새로운 |
| 보증: | 1년 | 최소 주문 수량: | 50개 |
| 씰링 구성: | 압착 커버 플레이트 + 씰링 플레이트 | 재료: | 고무 |
| 피스톤 재질: | 철 | ||
| 강조하다: | Truck Air Spring for Firestone W01-M58-8473,Truck Air Spring compatible with Volvo 20582214,Truck Air Spring replacement for Goodyear 1R11-805 |
||

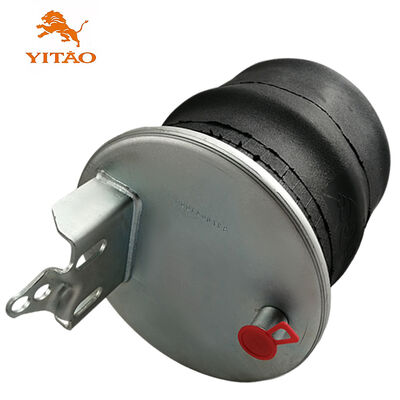

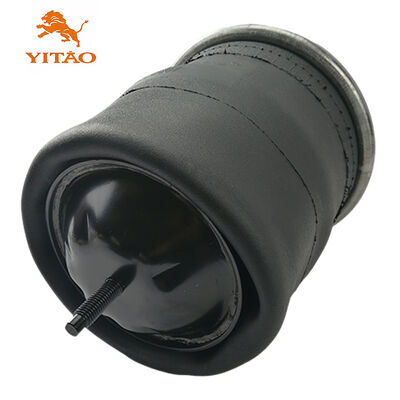

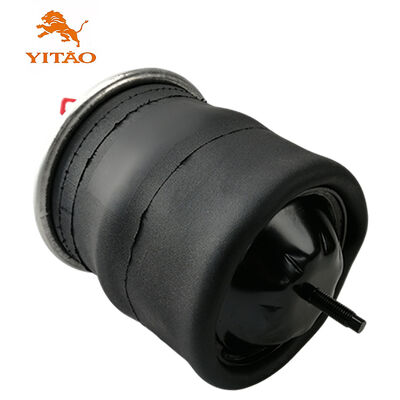

1V 7752 Truck Air Spring manufactured to specifications matching Firestone W01-M58-8473/AB Vovo 20582214/Goodyear 1R11-805. This air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
| Brand | Reference Numbers | Numbering Discrepancy |
|---|---|---|
| Firestone | W01-M58-8473 | W01 M58 8473/W01M588473/W01M58-8473/W01-M588473/W01-M58-8473 |
| Contitech | 6607NP01 | 6607NP01 |
| Goodyear | 1R11-805 | 1R11 805/1R11805/1R11-805 |
| Phoenix | 1DF17A-1 | 1DF17A 1/1DF17A1/1DF17A-1 |
| Dunlop FR | D11B42 | D11B42 |
| Templim | 04.060.6206.060 | 04.060.6206.060 |
| WABCO | 9518110060 | 9518110060 |
| AB Vovo | 20582214 / 20531987 | 20582214 20531987/2058221420531987/20582214/20531987 |
| AB Vovo | 1076418 / 31171695 | 1076418 31171695/107641831171695/1076418/31171695 |
| AB Vovo | 20456156 / 20374511 | 20456156 20374511/2045615620374511/20456156/20374511 |
| Granning | 93911 | 93911 |
| Airfren | 20.6607.1CM | 20.6607.1CM |
| DT | 2.62178 | 2.62178 |
| Meritor | MLF7170 | MLF7170 |
| Airtech | 134302 | 134302 |
| Airtech | 36418K | 36418K |
| Specifications | Parameters |
|---|---|
| Outer diameter | φ204 |
| Weight | 8.037 kg |
| Package Dimensions | 28*28*38.5cm |
| Natural height | 545mm |
| Maximum height | 495mm |
| Minimum height | 207mm |
| Extended Height | To be updated |
| Compressed Height | To be updated |
| Top Plate Width | 231mm |
| Piston Width | 168mm |
