제품 상세 정보:
|
| OE 번호: | W01-M58-8477,6606NP01,1D20E-1,134462,37804K,93910,2.62430,04.0 60.6206.071,MLF7181,2058220920531986, | 유형: | 트럭 공기 스프링 |
|---|---|---|---|
| 상태: | 새로운 | 외경: | Φ240 |
| 자연 높이: | 522mm | 최대 높이: | 452mm |
| 최소 높이: | 200mm | 씰링 구성: | 압입 커버 플레이트 + 플랜지 |
| 피스톤 재질: | 철 | ||
| 강조하다: | 1V 6036 truck air spring,Firestone W01-M58-8477 air spring,Contitech 6606NP01 truck air spring |
||

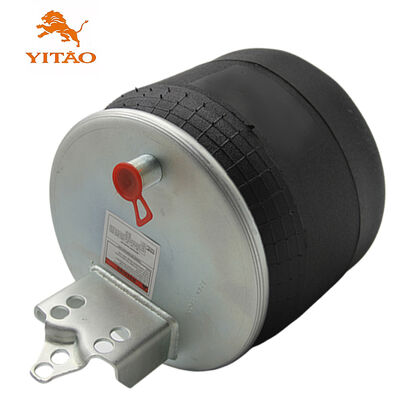

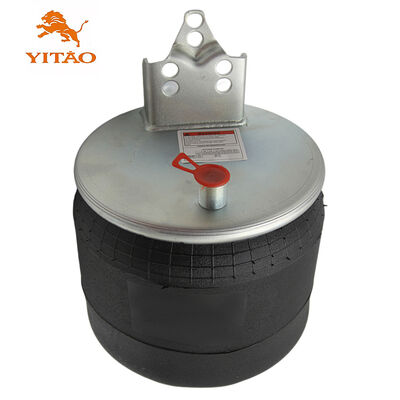

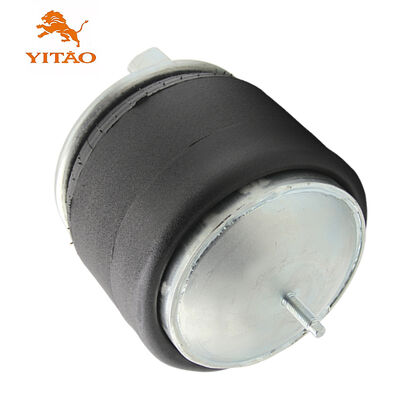

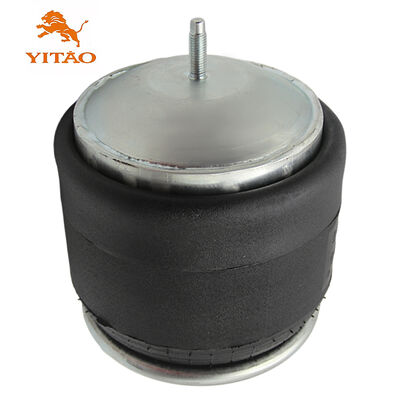

1V 6036 Truck Air Spring - High-quality replacement air spring designed for heavy-duty truck applications, compatible with multiple OEM part numbers including Firestone W01-M58-8477, Contitech 6606NP01, and Phoenix 1D20E-1.
| Brand | Reference Numbers | Numbering Discrepancy |
|---|---|---|
| Firestone | W01-M58-8477 | W01M588477 / :W01M588477 |
| Contitech | 6606NP01 | :6606NP01 |
| Phoenix | 1D20E-1 | 1D20E1 / :1D20E1 |
| Airtech | 134462 / 37804K | 134462 / 37804K / :134462 / :37804K |
| Granning | 93910 | :93910 |
| DT | 2.62430 | 262430 / :262430 |
| Templin | 04.060.6206.071 | 040606206071 / :040606206071 |
| Meritor | MLF7181 | :MLF7181 |
| AB vovo | 20582209 / 20427804 / 21961443 | 20582209 / 20427804 / 21961443 / :20582209 / :20427804 / :21961443 |
| AB vovo | 20531986 / 20456154 | 20531986 / 20456154 / :20531986 / :20456154 |
| AB vovo | 31171694 / 20427801 | 31171694 / 20427801 / :31171694 / :20427801 |
| Specifications | Parameters |
|---|---|
| Extended Height | To be updated |
| Compressed Height | To be updated |
| Top Plate Width | 231mm |
| Piston Width | 197mm |
| Weight | 9.253 kg |
| Package Dimensions | 27*27*36cm |
